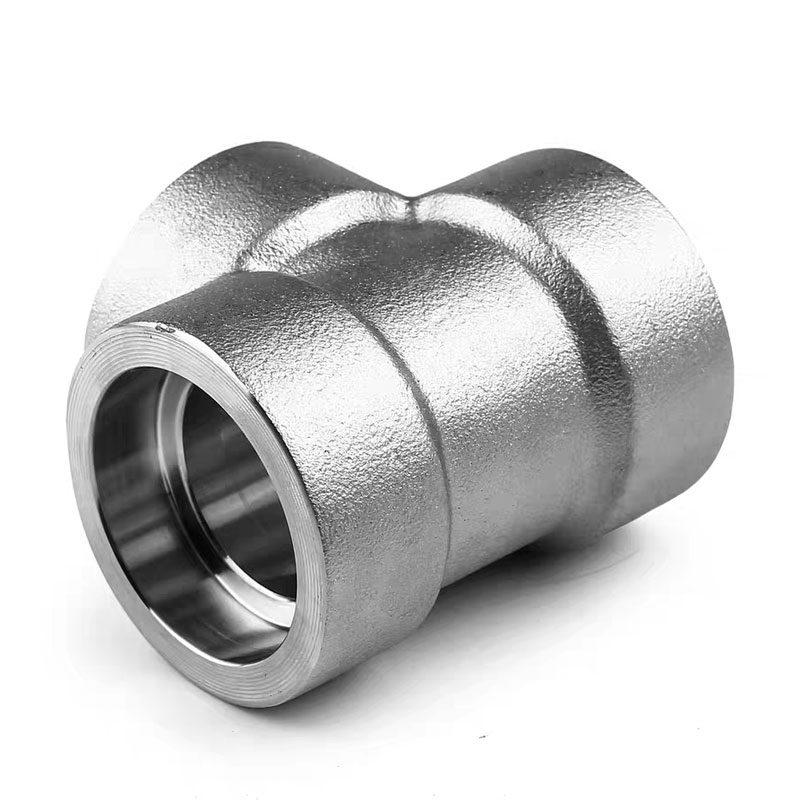

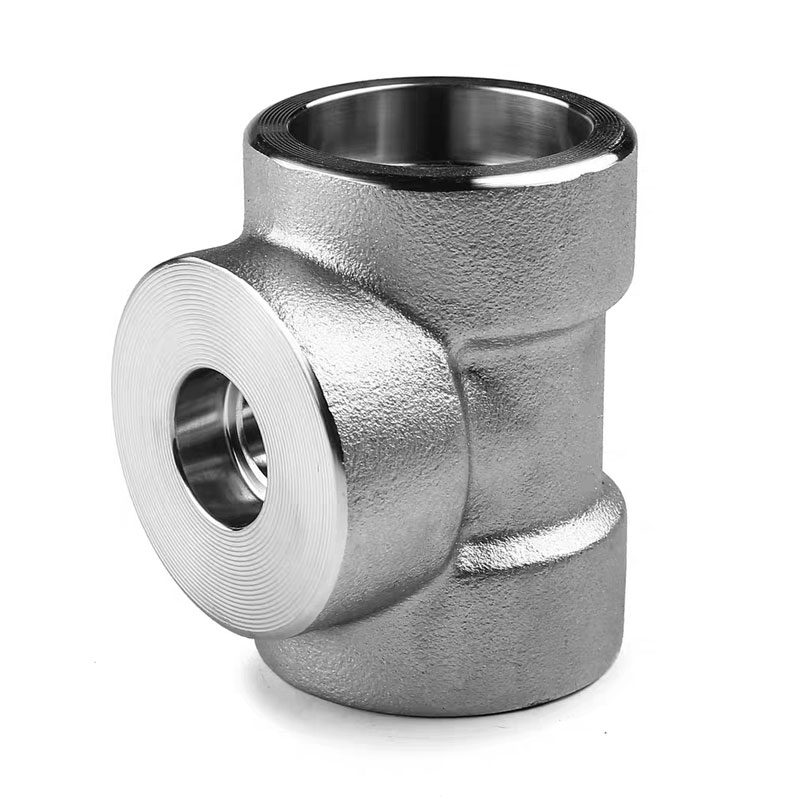

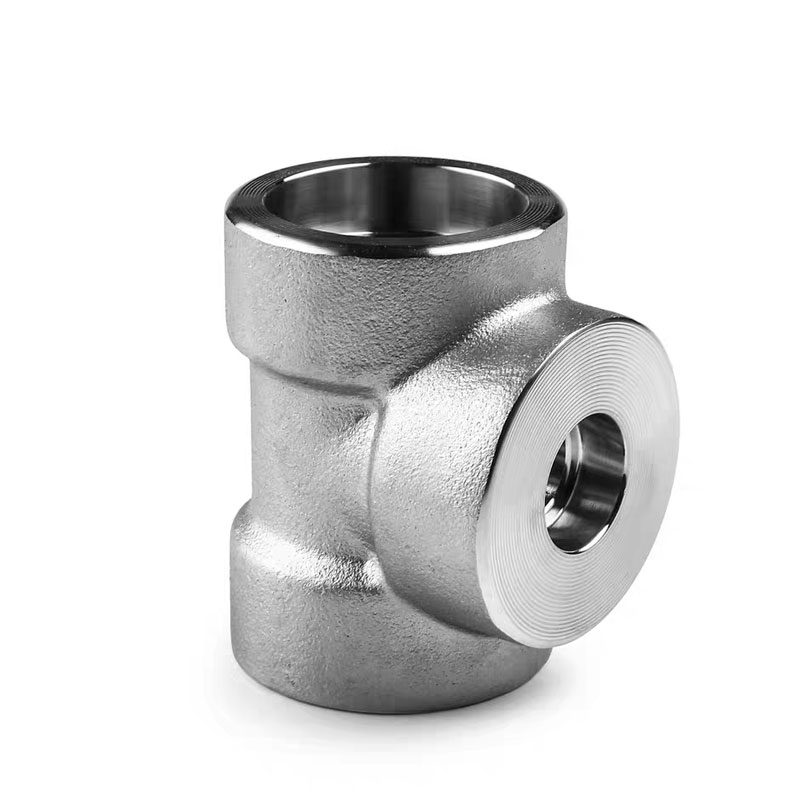

Socket-weld and threaded tees, equal and reducing, 3000LB–9000LB.
| Size range | DN6–DN100 standard; DN150–DN200 on request |
|---|---|
| Types | Equal, reducing |
| Pressure class | 3000LB, 6000LB, 9000LB |
| Standards | ASME B16.11, MSS SP-97, GB/T 14383, SH/T 3410, JIS B2316 |
| Ends | Socket weld, NPT / BSP threaded |
| Testing | PMI, hardness, hydrostatic on request |
A forged tee takes the branch load in one homogeneous body. Because it is forged from bar rather than fabricated from pipe and welded, there is no seam at the branch — the point where small-bore lines usually fail first.
Equal and reducing tees, DN6–DN100 standard, DN150–DN200 on request.
3000LB (Sch80/XS), 6000LB (Sch60) and 9000LB (XXS) wall matching.
Socket weld to ASME B16.11 or threaded NPT / BSP.
NACE MR0175 material with hardness testing for wet H2S; impact-tested grades for low temperature.
