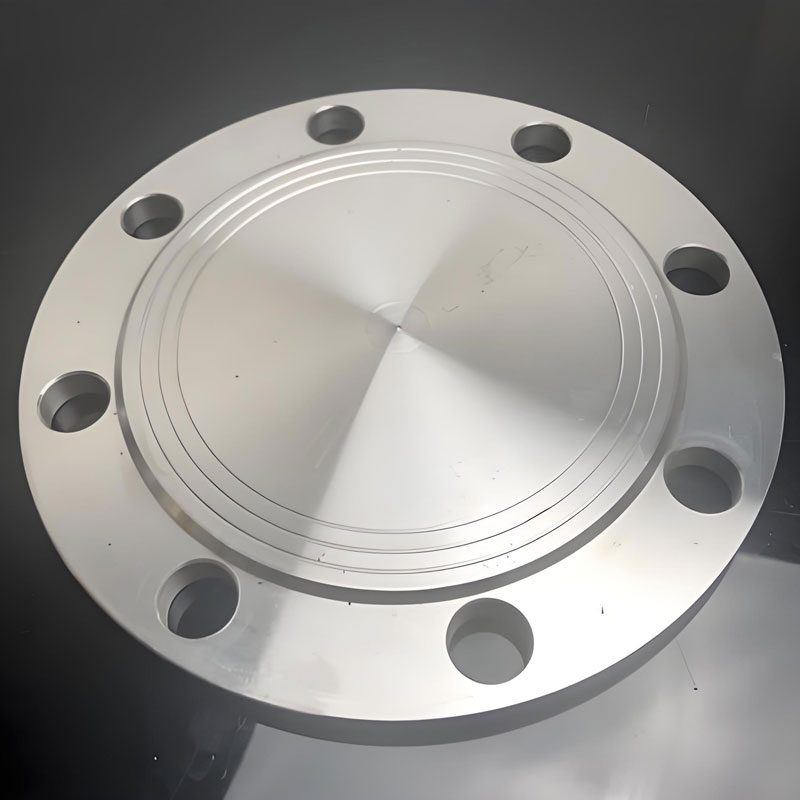

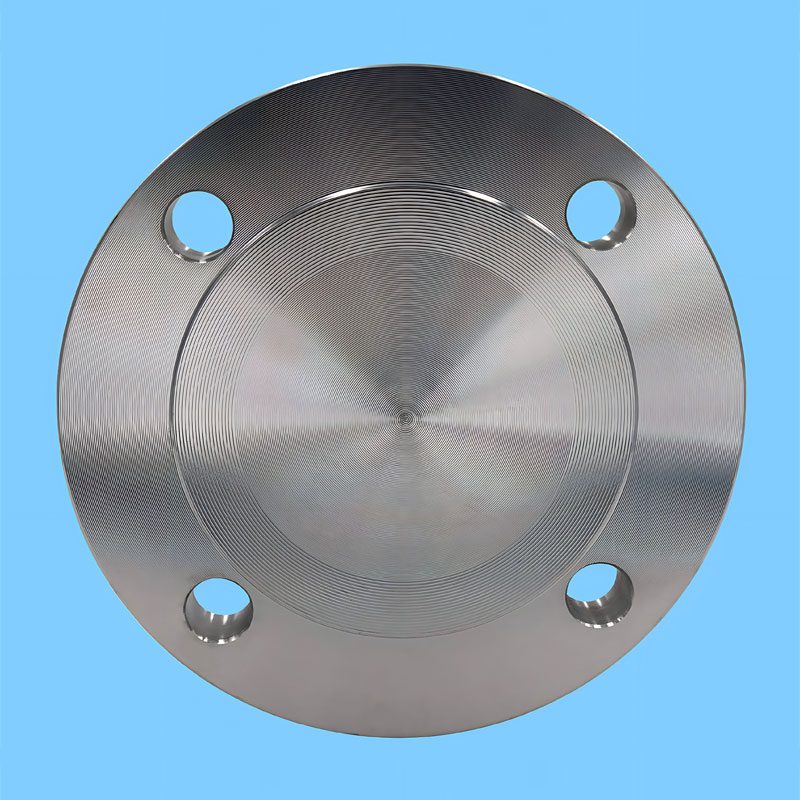

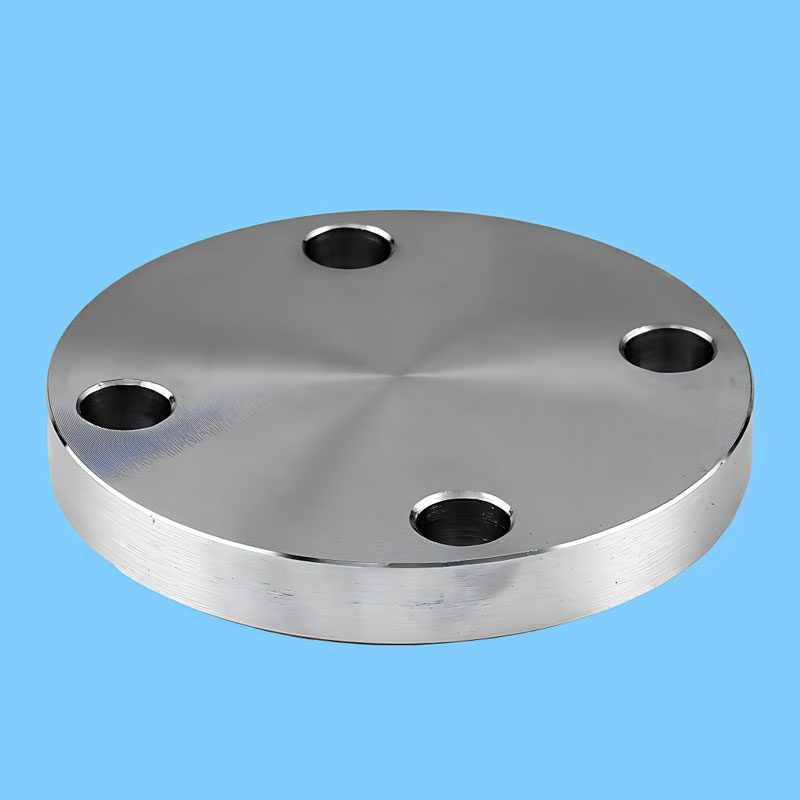

Solid disc blind, RF / FF / MFM / TG / RJ, Class 150–2500.
| Size range | DN10–DN600 standard; larger to drawing |
|---|---|
| Pressure class | PN6–PN40, Class 150–2500, JIS 5K–20K |
| Standards | ASME B16.5, ASME B16.47, GB/T 9123-2010, HG/T 20592-2009, EN 1092-1 |
| Face types | RF, FF, MFM, TG, RJ |
| Options | Spectacle blind, paddle blind, tapped blind for pressure gauge |
| Marking | Heat number, size, class, material, and a drilled tell-tale hole where specified |
A blind flange closes a line, a nozzle or a manway with a solid disc and a bolted joint. Because it can be unbolted rather than cut, it is the standard way to provide future tie-in points, isolation for maintenance and hydrotest boundaries.
Standard blind (blank disc), spectacle blind (two discs linked so the line can be switched open or closed), and paddle blind for temporary isolation.
Thickness increases with pressure class; at Class 900 and above the disc is substantially heavier than a same-size slip-on.
RF standard, with FF for low pressure, MFM and TG where gasket extrusion is a concern, and RJ for high-pressure gas service.
