Flanges to drawing: non-standard bolt circles, profiles, tapers and mixed faces.
| Size range | DN10–DN6000; OD 75–2190 mm |
|---|---|
| Pressure class | PN0.25–PN42.0, Class 150–2500 |
| Bolt pattern | 4–48 holes, Ø11–30 mm, M10–M27 threads |
| Reference standards | ASME B16.5 / B16.47, EN 1092-1, HG/T 20592-2009, DIN 2573 / 2576, JIS B2220 |
| Manufacture | Forging, ring rolling, CNC turning and milling |
| Documentation | EN 10204 3.1 certificate, dimensional report, PMI |
Not every flange is in a table. Equipment nozzles, imported valve interfaces and replacement parts often need a bolt circle, a hub profile or a facing that no standard covers. We machine to your drawing and agree the inspection plan before the first chip is cut.

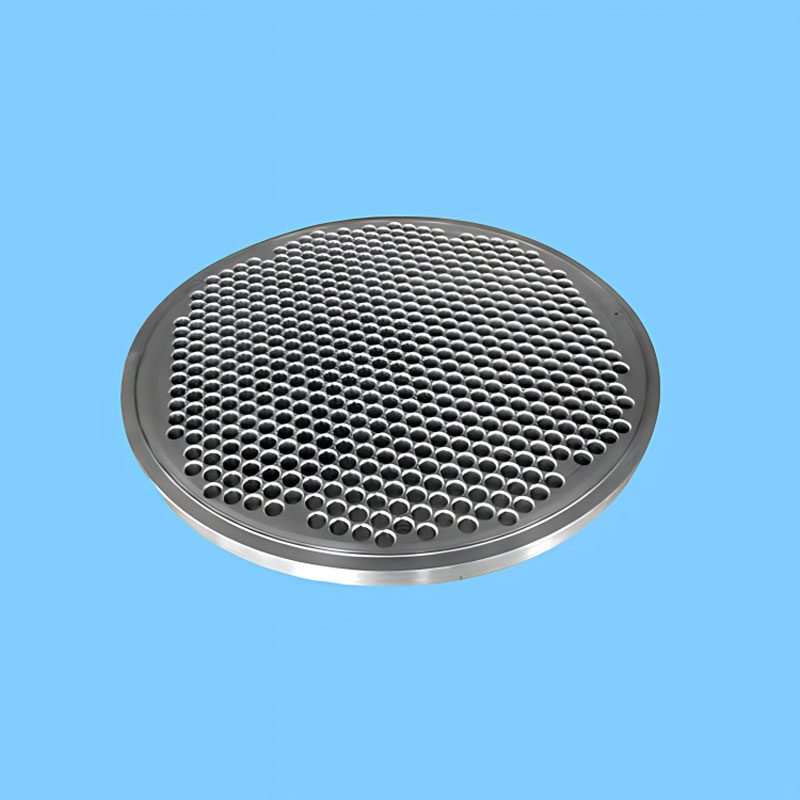

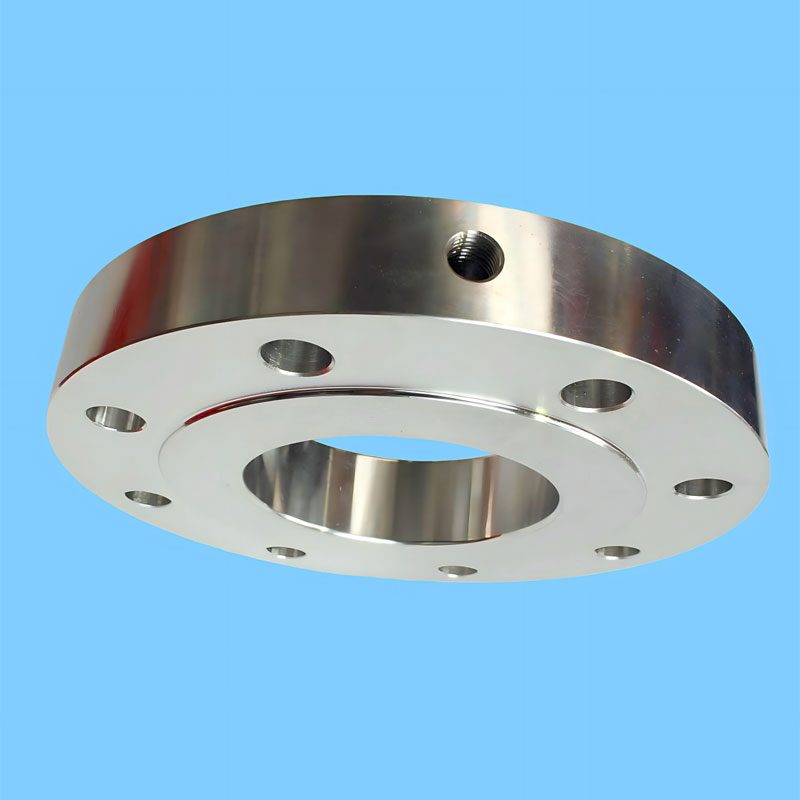

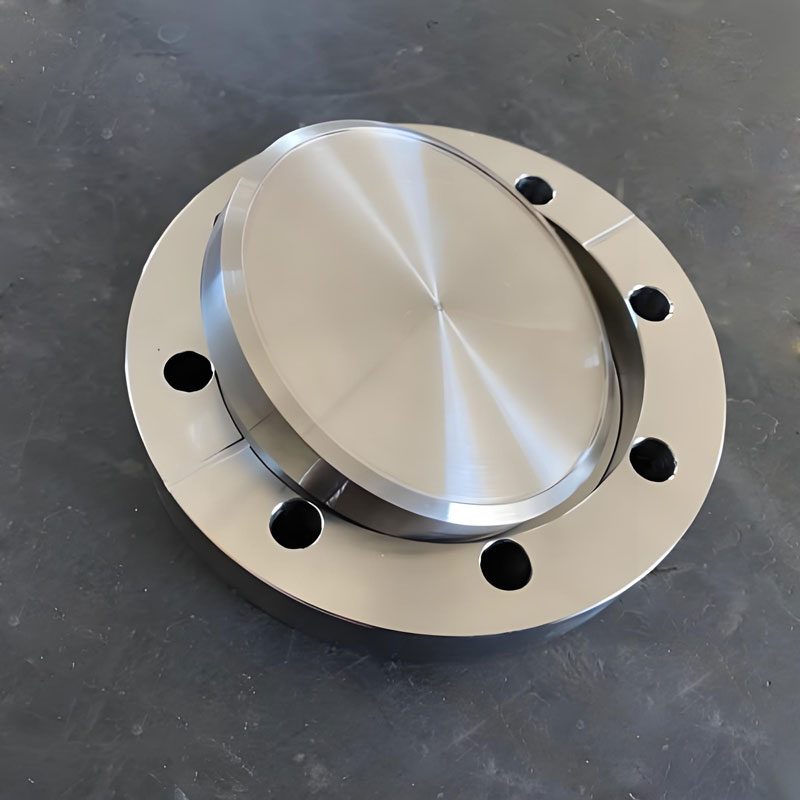

Non-standard bolt circles, slot patterns and tapped holes; conical or stepped hubs; reducing bores; double-faced and adapter flanges.
Sizes from DN10 to DN6000, outside diameter 75–2190 mm, thickness 12–58 mm and heavier on request.
Send the drawing or a dimensioned sketch with material, quantity, face type and any pressure-test requirement. If a standard can be used instead, we will say so — it is usually cheaper.
Where the part is a replacement, a 3D scan of the existing flange can be used to rebuild the drawing.
