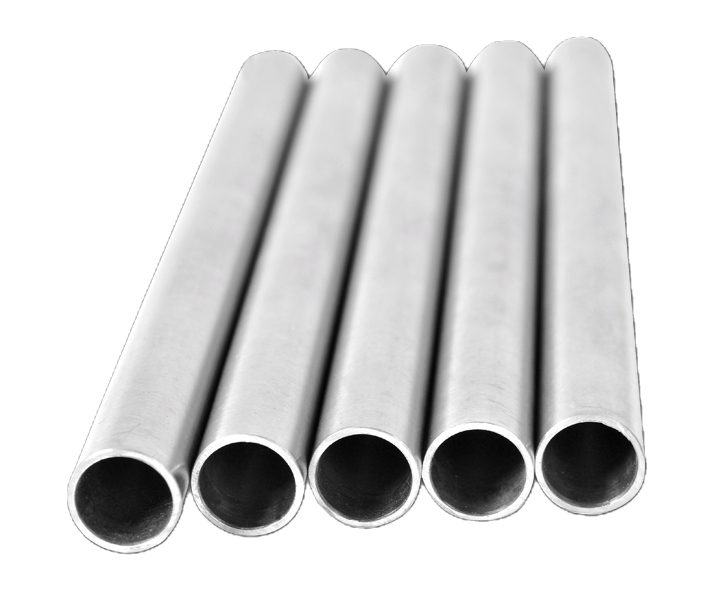

Hot-rolled and cold-drawn seamless pipe, 4–900 mm OD, carbon to nickel alloy.

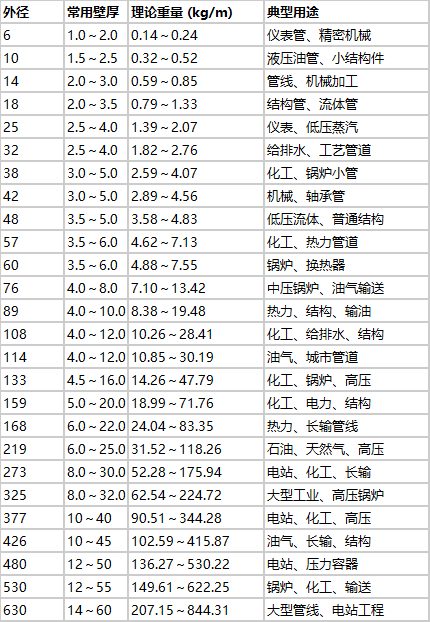

| Outside diameter | 4–900 mm |
|---|---|
| Wall thickness | 0.5–60 mm, by schedule or drawing |
| Length | 5.8 m, 6 m, 11.8 m, 12 m, or cut to length |
| Standards | GB/T 17395-2008, GB/T 2102-2018, GB/T 5310-2018, GB/T 9948-2018, GB/T 6479-2018, GB/T 18248-2018, ASTM A106 / A335 / A312 |
| Ends | Plain, bevelled, threaded with coupling |
| Testing | Hydrostatic, UT, eddy current, PMI, mechanical properties |
Seamless pipe has no longitudinal weld, so there is no heat-affected zone running the length of the line and no weld defect to find later. It is the base product behind most of what we supply: cut, bevelled, tested and certified to the project specification.
Outside diameter 4–900 mm, wall thickness by schedule or by drawing; round and shaped sections (square, oval, hexagonal, finned) on request.
Hot-rolled for heavy wall and large diameter, cold-drawn for thin wall and tight tolerance.
Uniform stress distribution and 20–30% higher pressure capability at equal wall thickness.
Outside diameter tolerance ±0.2% and wall tolerance within 5% on cold-drawn product.
Cold-rolled / cold-drawn precision tube, mirror bore, tight wall tolerance.
Specifications
Small-bore precision tubing for impulse, sampling and signal lines.
Specifications
Hygienic stainless tube, Ra ≤ 0.8 µm bore, CIP/SIP compatible.
SpecificationsQuotes within one business day. Send grade, size, pressure class, face type and quantity — a drawing works better than a description.
