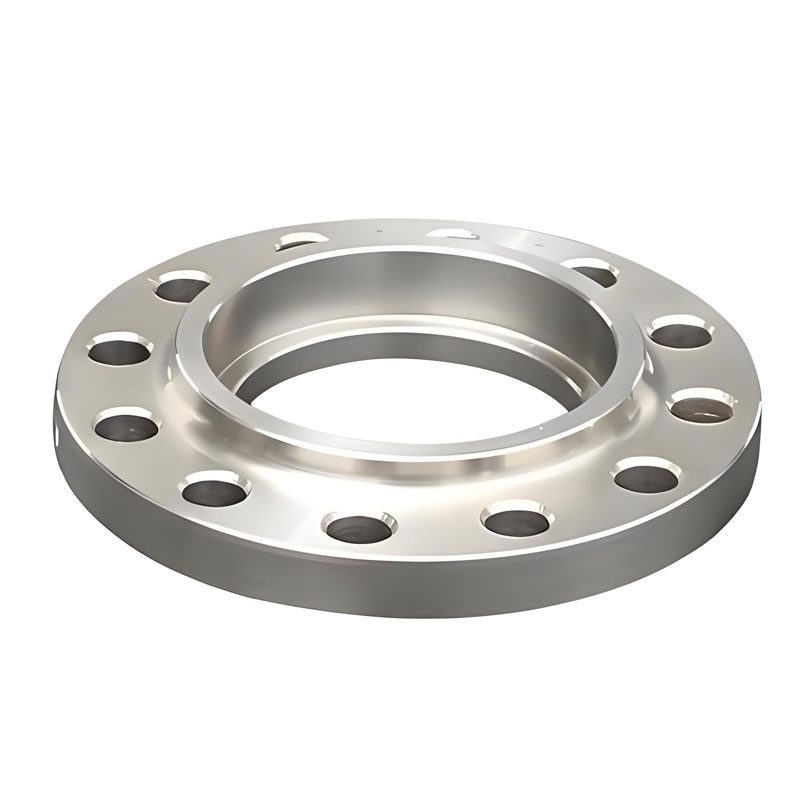

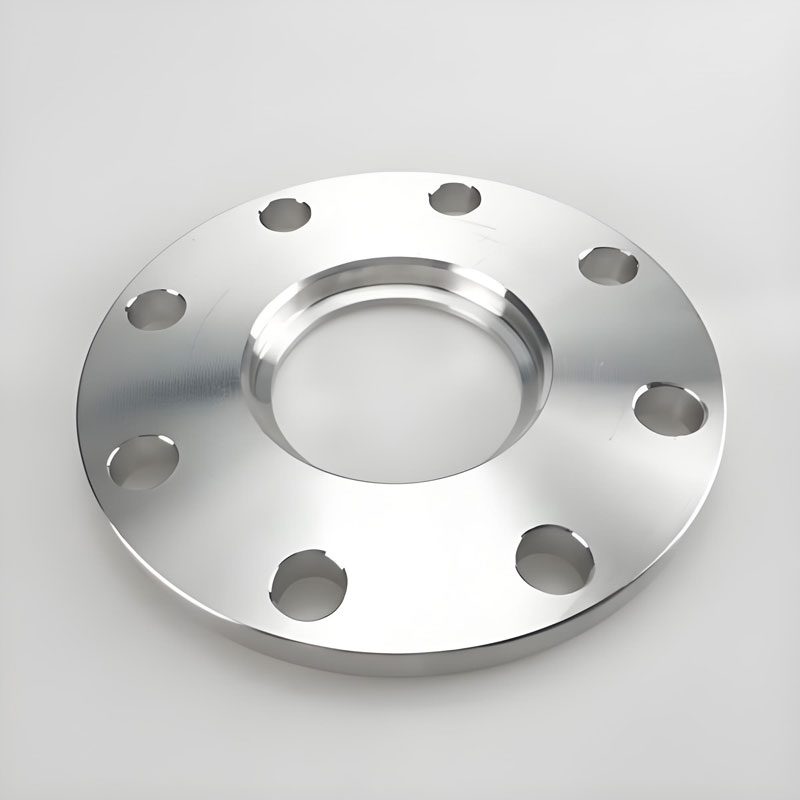

Small-bore socket weld flange, single external weld, DN6–DN100.
| Size range | DN6–DN100 (1/8–4 in); DN150 on special order |
|---|---|
| Pressure class | PN10–PN100, Class 150–1500, JIS 5K–20K |
| Standards | ASME B16.5, HG/T 20597-1997 (superseded by HG/T 20592-2009), GB/T 9117, EN 1092-1, JIS B2220 |
| Face types | RF, MFM, TG, RJ |
| Welding | Single external fillet weld |
| Bore | Socket machined to the ordered pipe outside diameter |
The socket weld flange lets the pipe sit in a recess and be welded on the outside only. For small-bore high-pressure lines where there is no room to weld inside, and where distortion must stay minimal, this is the practical connection.
Socket depth and bore are machined so the pipe stops at the correct depth, leaving the specified expansion gap for welding.
Single external fillet weld keeps heat input low and distortion small — important on instrument and sample lines.
RF for general service, MFM where gasket blow-out is a risk, TG for toxic or flammable media, RJ for Class 900 and above.
